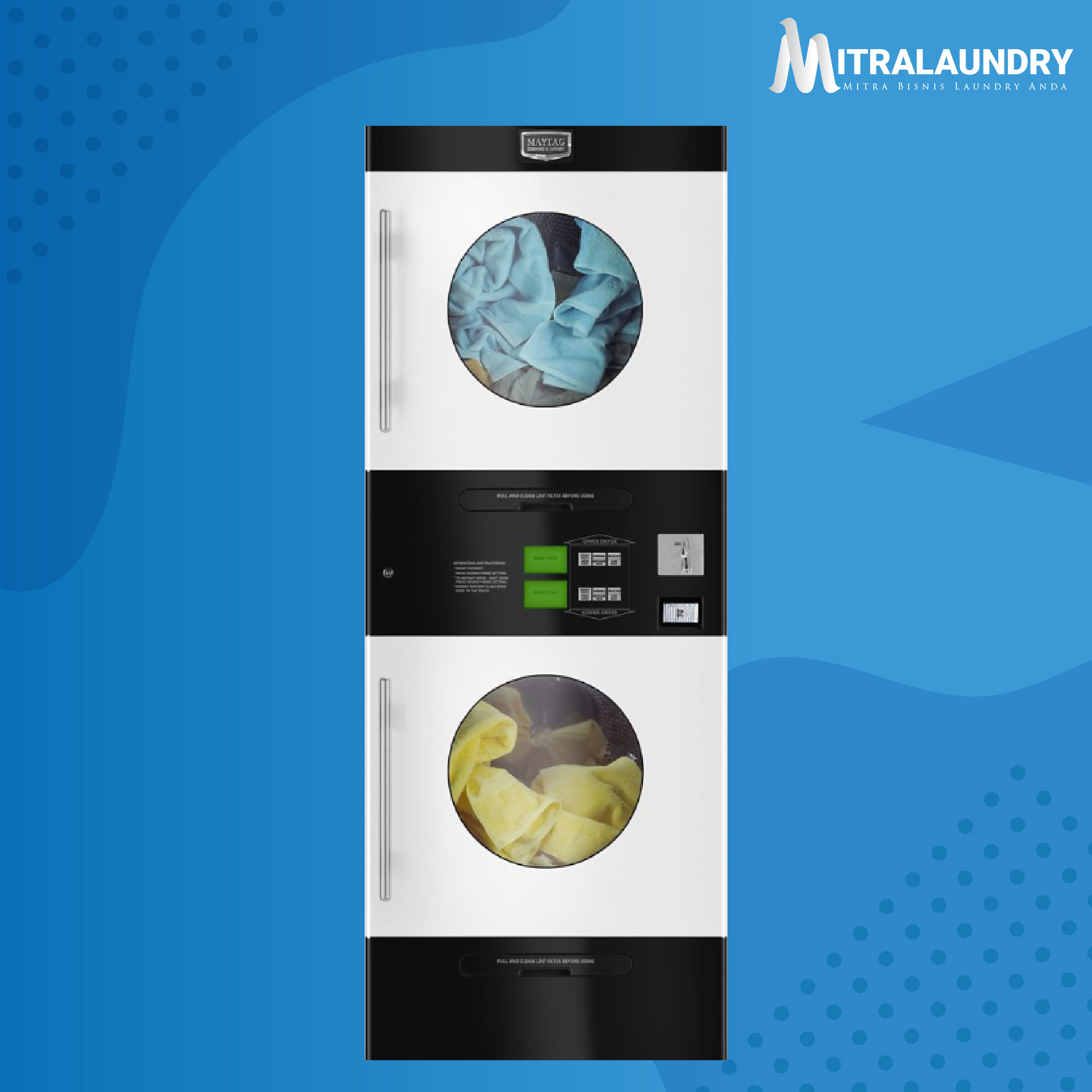

MAYTAG® MLG52PDBWW STACK DRYER (Coin Drop)

Model MLG52PDBWW

50 lb. Capacity; Microprocessor Controls; Single Phase Reversing (120 Volts); Galvanized Drums

Built-To-Last Features

  • Fire Suppression System
  • Heavy-Duty Enclosed Motors
  • 5 Year Limited Warranty – All Parts Covered
  • Four Point Roller Support System

For Your Operation

  • Accu Trac® Audit System With Two-Way Data Communication
  • Front Access For Easier Self Service
  • Single Payment System
  • Low BTUs and Fast Dry
  • Two Large-Capacity Lint Drawers

For Your Customers

  • Digital Display Shows Time Remaining In Cycle
  • Fast-Drying Axial Airflow System
  • Owner Programmed Single-Phase Reversing
  • Extra-Large Door Openings With Dual Pane Glass Door
  • Self Diagnostic Microprocessor Controls
  • Large 50-Pound Capacity

Controls

  • New Soft-Touch Keypad for Ease-of-Use and Durability



Description

MLG52PDBWW
MAYTAG® COMMERCIAL DEPENDABLE CARE® MULTI-LOAD STACK DRYER
FEATURES :
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half-century.
ENERGY SAVING SOLUTION

May tag built the first appliance ever to receive the ENERGY STAR®label.
Today we offer energy-saving laundry solutions for all commercial laundry needs— from energy-efficient dryers to highly efficient ENERGY STAR®-qualified washers — to help you save money and build profits.
UPDATED CONTROL
New soft-touch keypad for ease-of-use and durability. Includes May tag®Accu Trac®audit system that uses a PDA to communicate with the microprocessor controls — so you can set up, monitor and audit your equipment in seconds
CAPACITY:
• 50 lb. Capacity
• 10% Greater Capacity Than a Maytag®30-lb. Stack Dryer
FOR YOUR CUSTOMERS:
• Fast-Drying Axial 100% Airflow System Enhances Airflow
• ThermoGuard™System Helps Prevent Laundry Overheating
• Owner-Programmable Single-Phase Reversing
• Extra-Large Door Openings With Dual Pane Glass Door
• Time Remaining Digital Display
• Self-Diagnostic Microprocessor Controls
FOR YOUR OPERATIOn:
• Low BTUs and Fast Dry
• Enhanced Insulation For Greater Efficiency
• Front Serviceable
• Accu Trac®Audit System With Two-Way Data Communication
• Single Payment System
• 2 Large-Capacity Lint Drawers
BUILT-TO-LAST™FEATURES:
• Heavy-Duty Enclosed Motors
• Fire Suppression System
• Four-Point Roller Support System
• 5 Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MODEL MLE/MLG52PD
MOTOR
Single-phase, thermoprotected against overload, auto-reset                                              •
Drive Motor — HP (kw)                                                                                                              1/3 (0.25)
Blower Motor — HP (kw)                                                                                                           1/4 (.186)
CAPACITY
Cu. ft. (liters)                                                                                                                                2 x 16 (2 x 453)
Lbs. (kg)                                                                                                                                         2 x 50 (2 x 22.68)
AIRFLOW—cfm (cmm)
Cfm (cmm) per drying chamber                                                                                               540 (15.20)
ELECTRICAL REQUIREMENTS
MLG model—voltage                                                                                                                   120V/60Hz
Export Models — options available                                                                                          220-380V/1PH or 3 PH
BREAKER/FUSE REQUIREMENTS—amps                                                                         15
TUMBLERS
Diameter — in. (mm)                                                                                                                 2 x 32.75 (2 x 832)
Depth — in. (mm)                                                                                                                       2 x 32.75 (2 x 832)
DOOR OPENING DIAMETER
In. (mm)                                                                                                                                        2 x 8 (203)\
EXHAUST DUCT DIAMETER
In. (mm)                                                                                                                                        2 x 6 (152)
Optional                                                                                                                                        1 x 10 (254)
GAS RATING
BTU/hr. (kcal/hr.)                                                                                                                     110,000 (27,720)
GAS INLET
M.N.P.T. in. (mm).                                                                                                                     2 inlet,1⁄2(12.7)
COLORS WHITE AND STAINLESS STEEL
APPROXIMATE WEIGHT
Crated—lbs. (kg)                                                                                                                        960 (435)
Uncrated—lbs. (kg)                                                                                                                   910 (413)
DIMENSIONS
Width—in. (mm)                                                                                                                       34.25 (870)
Depth—in. (mm)                                                                                                                       56.53 (1,436)
Height—in. (mm)                                                                                                                      81.75 (2,076)
