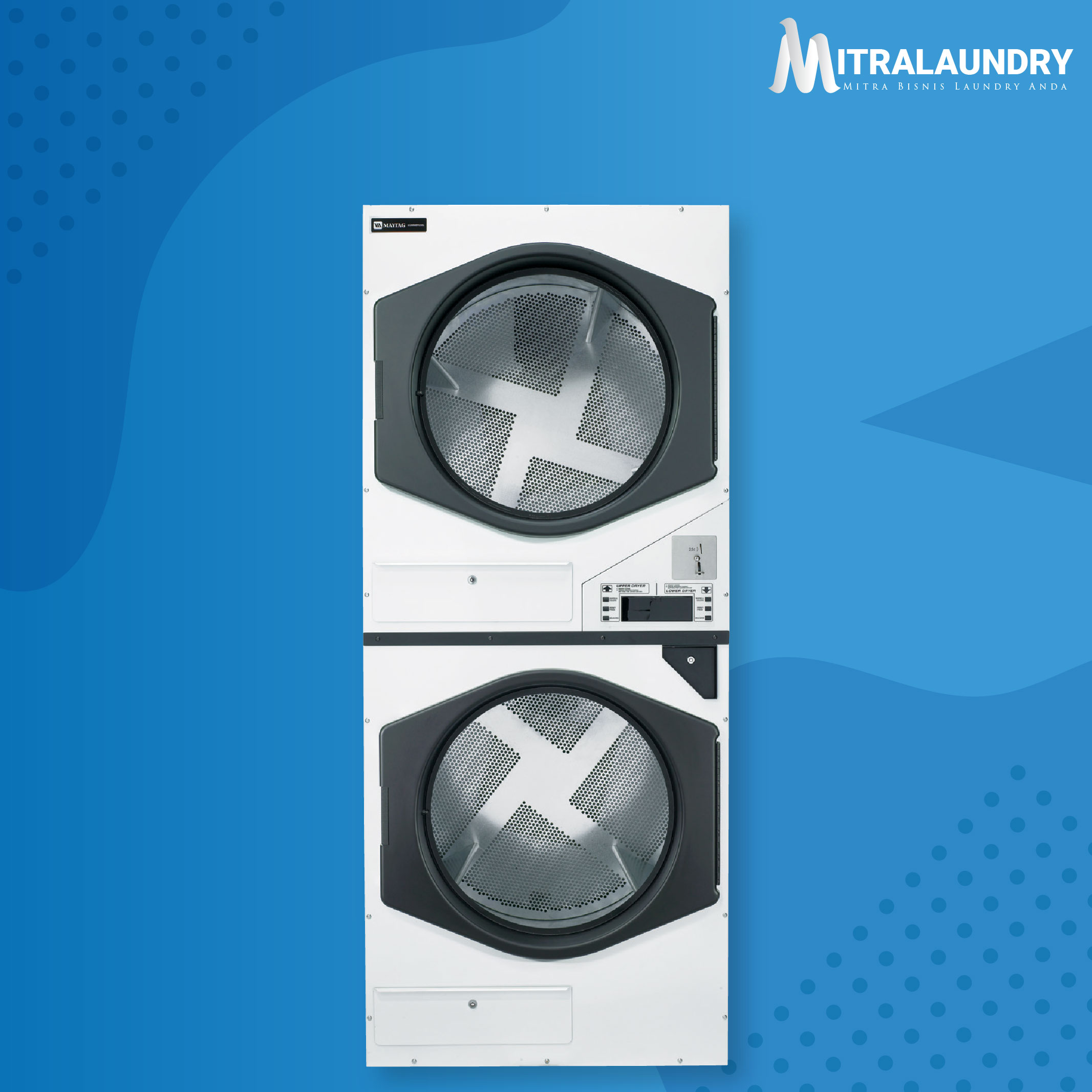

MAYTAG® MLG45PDCWW STACK DRYER (Coin Drop)

Model MLG45PDCWW

45 lb.; Microprocessor Controls; Single Phase (120 Volts); Galvanized Drums

Built-To-Last Features

  • Heavy-Duty Motor
  • Permanently Lubricated Bearings

For Your Operation

  • Single Coin Box For Both Dryers
  • Front Access For Easier Self Service
  • Two 8″ Vents or One Optional 10″ Vent
  • 2 Large Capacity Lint Drawers

For Your Customers

  • ThermoGuard™ System Helps Prevent Laundry Overheating
  • Extra-Large Door Openings
  • Digital Display Shows Time Remaining In Cycle
  • Fast-Drying Axial Airflow System

Description

MLG45PDCWW
MAYTAG® COMMERCIAL DEPENDABLE CARE® MULTI-LOAD STACK DRYER
FEATURES :
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half-century.
MICROPROCESSOR CONTROLS
Maytag®Computer Trac ®controls let you adjust prices by cycle, day and time — and they provide simple one-touch cycle selection.\
BUILT LIKE A TANK
The MLG45PDCWW is one of the heaviest 45-pound stack dryers on the market, offering years of dependable May tag performance.
FOR YOUR CUSTOMERS:
• Fast-Drying A xial Airflow System
• Thermo Guard™System Helps Prevent Laundry Overheating
• Extra-Large Door Openings
• Time Remaining Digital Display
• Microprocessor Controls
FOR YOUR OPERATION:
• Single Coin Box For Both Dryers
• Front Access For Easier Self Service
• One 8″ Vent
• 2 Large-Capacity Lint Drawers
BUILT-TO-LAST FEATURES:
• Heavy-Duty Enclosed Motors
• Permanently Lubricated Bearings
• Rear Belt Drive System
• 5-Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MLG45PD
MOTOR
Single-phase, thermoprotected against overload, auto-reset                                              •
HP (kw)                                                                                                                                          .75 (.56)
CAPACITY
Cu. ft. (liters)                                                                                                                                 14.6 (413.43)
Lbs. (kg)                                                                                                                                         45 (20.41)
AIRFLOW—cfm (cmm)
Cfm (cmm) per drying chamber                                                                                                600 (16.99)
TUMBLE SPEED
RPM                                                                                                                                                4 3 + 1
ELECTRICAL REQUIREMENTS
MLG model—voltage                                                                                                                   120V/60Hz
BREAKER/FUSE REQUIREMENTS—amps                                                                         15
TUMBLERS
Diameter — in. (mm)                                                                                                                 2-32.75 (2-831.9)
Depth — in. (mm)                                                                                                                       2-30 (2-762)
DOOR OPENING DIAMETER
In. (mm)                                                                                                                                        27 (686)
EXHAUST DUCT DIAMETER
In. (mm)                                                                                                                                        2-8 (203) or 1-10 (254)
GAS RATING
BTU/hr. (kcal/hr.)                                                                                                                    112,000 (28,230)
GAS INLET
M.N.P.T. in. (mm).                                                                                                                     1 inlet,3⁄4(19)
ADJUSTABLE LEVELING LEGS                                                                                           •
APPROXIMATE WEIGHT
Crated—lbs. (kg)                                                                                                                        1080 (490)
Uncrated—lbs. (kg)                                                                                                                   1015 (460)
DIMENSIONS
Width—in. (mm)                                                                                                                       34.25 (870)
Depth—in. (mm)                                                                                                                       52.5 (1334)
Height—in. (mm)                                                                                                                      81 (2057)
Door opening diameter — in. (mm)                                                                                      27 (686)
