Description

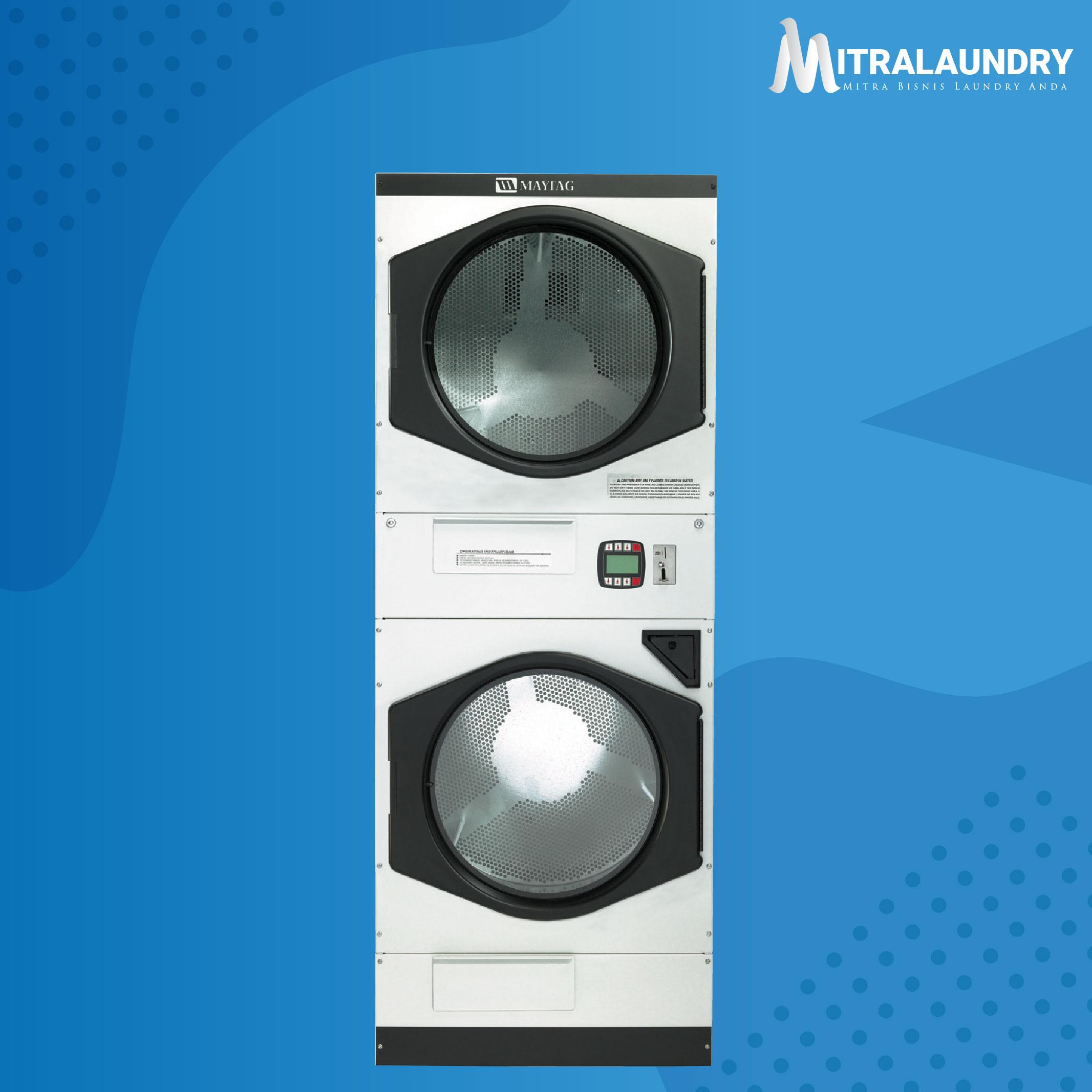

MLG31PCCWW
MAYTAG® COMMERCIAL DEPENDABLE CARE® MULTI-LOAD STACK DRYER
FEATURES :
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half-century.
FAST, EFFICIENT DRYING IN LESS FLOOR SPACE
The MLG31PCCWW offers a 42 3/4″ footprint depth—one of the smallest in the industry. You can fit two 30-pound dryer pockets in the same floor space as one conventional multi-load dryer.
MICROPROCESSOR CONTROLS
Programmable controls let you adjust pricing at the touch of a button. Microprocessor coin-drop helps prevent slugging
.
FOR YOuR CuSTOMERS:
• Fast-Drying Axial Airflow System
• Extra-Large Door Openings
• Digital Display Shows Time Remaining In Cycle
FOR YOuR OPERATION:
• Single Coin Box For Both Dryers
• Front Access For Easy Service
• Two 6″ Vents Convert To One 10″ Vent
• Two Large-Capacity Lint Drawers
BuILT-TO-LAST™FEATuRES:
• Heavy-Duty Enclosed Motors
• Permanently Lubricated Bearings
• 5-Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MODEL MLG31PC
MOTOR
Single-phase, thermoprotected against overload, auto-reset •
HP (kw) 1/3 (.249)
CAPACITY
Cu. ft. (liters) 10.1 (2 8 6)
Lbs. (kg) 30 (13.6)
AIRFLOW—cfm (cmm)
Cfm (cmm) per drying chamber 4 0 0 (11. 3)
TUMBLE SPEED
RPM 4 3 + 1
ELECTRICAL REQUIREMENTS
MLG model—voltage 120V/60Hz
BREAKER/FUSE REQUIREMENTS—amps 15
TUMBLERS
Diameter — in. (mm) 27.25 (692.1)
Depth — in. (mm) 30 (762)
DOOR OPENING DIAMETER
In. (mm) 21.5 (5 4 6.1)
EXHAUST DUCT DIAMETER
In. (mm) 1 Inlet 10 (25,4), 2 Inlet 6 (15,2)
GAS RATING
BTU/hr. (kcal/hr.) 68.000 (17.135)
GAS INLET
M.N.P.T. in. (CM). 1/2 (1.3)
ADJUSTABLE LEVELING LEGS •
APPROXIMATE WEIGHT
Crated—lbs. (kg) 860 (390.1)
Uncrated—lbs. (kg) 793 (359.7)
