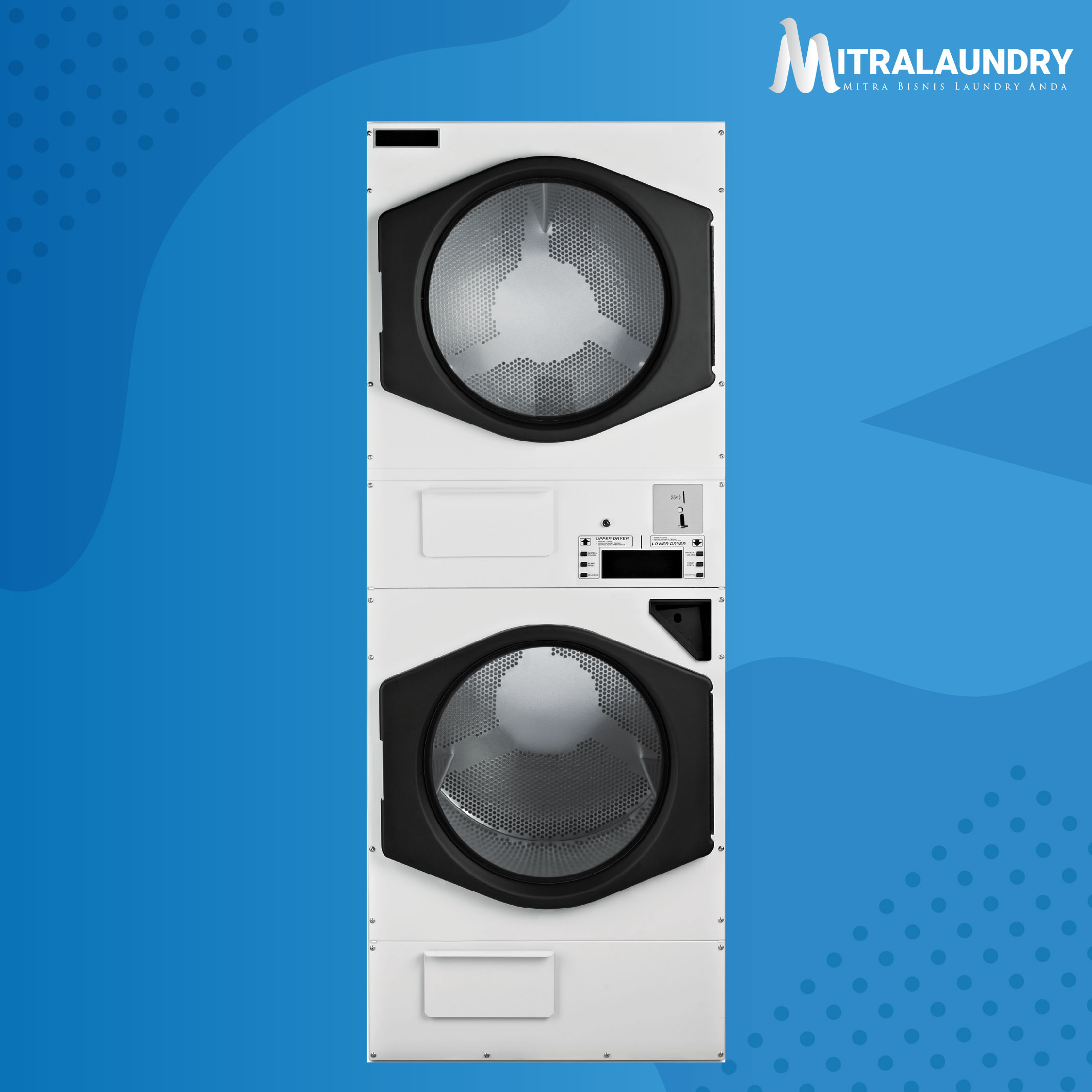

MAYTAG® MLG30PDBWW STACK DRYER (Coin Drop)

Model MLG30PDBWW

30lb Maytag® Coin Stack dryer

For Your Operation

  • Front Access For Easier Self Service
  • 2 Large Capacity Lint Drawers

For Your Customers

  • Extra-Large Door Openings

Features

  • Heavy-Duty Enclosed Motors
  • Fast-Drying Axial Airflow System
  • ThermoGuard™ System
  • Time Remaining Digital Display
  • Rear Belt Drive System
  • 5-Year Limited Warranty–All Parts Covered

Description

MLG30PDBWW
MAYTAG® COMMERCIAL DEPENDABLE CARE® MULTI-LOAD STACK DRYER
FEATURES :
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half-century.
MICROPROCESSOR CONTROLS
Maytag®Computer Trac ®controls let you adjust prices by cycle, day and time — and they provide simple one-touch cycle selection.
FOR YOUR CUSTOMERS:
• Fast-Drying A xial Airflow System
• Thermo Guard™System Helps Prevent Laundry Overheating
• Extra-Large Door Openings
• Time Remaining Digital Display
• Microprocessor Controls
FOR YOUR OPERATION:
• Single Coin Box For Both Dryers
• Front Access For Easier Self Service
• One 8″ Vent
• 2 Large-Capacity Lint Drawers
BUILT-TO-LAST FEATURES:
• Heavy-Duty Enclosed Motors
• Permanently Lubricated Bearings
• Rear Belt Drive System
• 5-Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MODEL MLE/MLG30PD
MOTOR
Single-phase, thermoprotected against overload, auto-reset                                              •
HP (kw)                                                                                                                                          .50 (0.37)
CAPACITY
Cu. ft. (liters)                                                                                                                                 10.1 (2 8 6)
Lbs. (kg)                                                                                                                                         30 (13.6)
AIRFLOW—cfm (cmm)
Cfm (cmm) per drying chamber                                                                                                4 0 0 (11. 3)
TUMBLE SPEED
RPM                                                                                                                                                4 3 + 1
ELECTRICAL REQUIREMENTS
MLG model—voltage                                                                                                                   120V/60Hz
BREAKER/FUSE REQUIREMENTS—amps                                                                         15
TUMBLERS
Diameter — in. (mm)                                                                                                                 27.25 (692.1)
Depth — in. (mm)                                                                                                                       30 (762)
DOOR OPENING DIAMETER
In. (mm)                                                                                                                                        21.5 (5 4 6.1)
EXHAUST DUCT DIAMETER
In. (mm)                                                                                                                                        8 (203)
GAS RATING
BTU/hr. (kcal/hr.)                                                                                                                     72,000 (18,14 3)
GAS INLET
M.N.P.T. in. (mm).                                                                                                                     1 inlet,1⁄2(12.7)
ADJUSTABLE LEVELING LEGS                                                                                           •
APPROXIMATE WEIGHT
Crated—lbs. (kg)                                                                                                                        710 (322)
Uncrated—lbs. (kg)                                                                                                                   675 (306)
DIMENSIONS
Width—in. (mm)                                                                                                                       29.75 (754)
Depth—in. (mm)                                                                                                                       5 3.4 (1355)
Height—in. (mm)                                                                                                                      78.25 (1988)
Door opening diameter — in. (mm)                                                                                      21.5 (5 4 6.1)
