Description

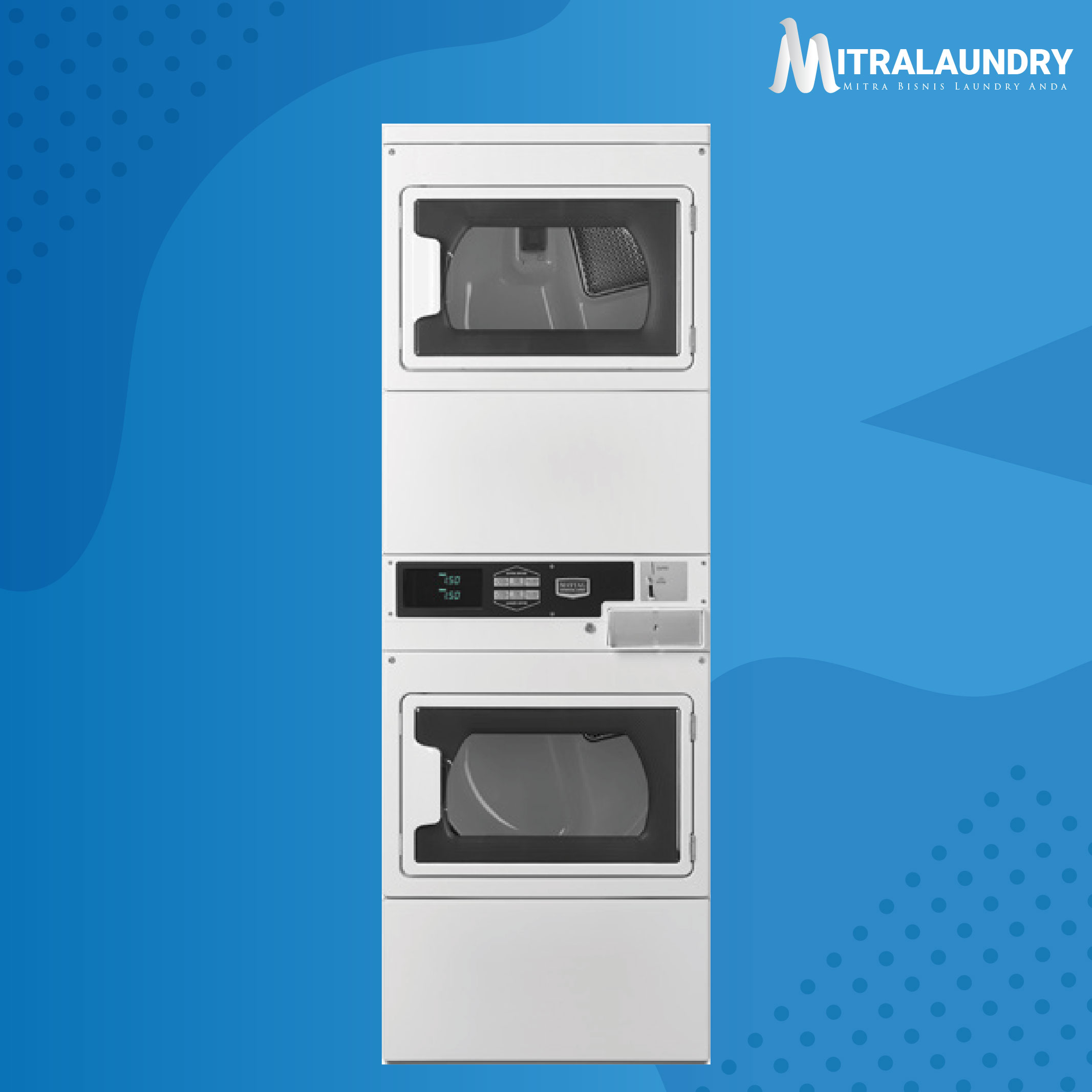

MLE/MLG27PDB MAYTAG® COMMERCIAL
SINGLE-LOAD SUPER-CAPACITY STACK DRYER
FEATURES :
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half-century.
TWO POCKETS IN THE SPACE OF ONE
You can potentially double your dryer income and help eliminate waiting with two dryer pockets in the same floor space as one single-load dryer.
FOR YOUR CUSTOMERS:
• Extra-Large 7.4 cu. ft. Capacity
• Easy-To-Use One-Touch Cycle Selection
• High Airflow For Better Clothes Care
• Time Remaining Display
• Optional Top-Off
• Larger Window For Convenience
FOR YOUR OPERATION:
• Advanced Computer Trac ® Controls Allow For Easy Programming
• Front Access For Easier Self Service
• Accu Trac®Audit System With Two-Way Data Communication
• Large-Capacity Metal Mesh Lint Filter
• Debit Card Compatibility
• Dual Coin-Drop Option
• TurboVent™Technology—Better PerformanceOn Long Vents
BUILT-TO-LAST™FEATURES:
• Four Roller Suspension With Permanently Lubricated Bearings
• Blower Guard Reduces Service Calls
• Premium Security Vault
• 5-Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MODEL MLE/MLG27PD
MOTOR
Single-phase, thermoprotected against overload, auto-reset •
HP (kw) 1⁄3(.33)
CAPACITY
Cu. ft. (liters) 7. 4 (20 9. 5)
AIRFLOW—cfm (cmm)
Gas/Electric models—per pocket 230(6.5)/215 (6.1)
TUMBLE SPEED
RPM 50 + 1.5
ELECTRICAL REQUIREMENTS
MLE model—voltage 240V/60Hz*
MLG model—voltage 120V/60Hz
Export models—voltage 220–240V/50 Hz
BREAKER/FUSE REQUIREMENTS—amps
Electric model—domestic (each drying chamber) 30
Electric model—Canada (one terminal block per stack) 60
Gas models, all versions—(one power cord per stack) 15
Electric model—export (one terminal block per stack) 50
HEATER ELEMENT RATING—watts
Domestic model—Per pocket 5,600
Export models—per pocket 4,600
EXHAUST DUCT DIAMETER
In. (mm) 4 (101.6)
ELECTRONIC BURNER IGNITION
MLG models •
GAS RATING
MLG models—BTU/hr. (kcal/hr.) 24,000 (6,048)
MLG export model—BTU/hr. (kcal/hr.) 20,000 (5,040)
GAS INLET
MLG models—in. 3⁄8N.P.T.
AUTOMATIC PRESSURE REGULATOR
MLG models •
ADJUSTABLE LEVELING LEGS •
APPROXIMATE WEIGHT
Crated—lbs. (kg) 294 (133 .4)
Uncrated—lbs. (kg) 272 (123 .4)
DIMENSIONS
Width—in. (mm) 27 (686)
Depth—in. (mm) 29 (737)
Height—in. (mm) 76.75 (1,950)
