LEGENDARY MAYTAG DEPENDABILITY

Maximizing your equipment investment for over a half-century.

FOR YOUR CUSTOMERS:

• Extra Large 7.4-Cu.-Ft. Capacity

• Simple Controls Are Easy for Multiple Users

• Powerful, High Airflow Dries Load Quickly,Saving Time

• Extra-Large Door and Drum Openings Allow Quick, Easy Loading and Unloading

FOR YOUR OPERATION:

• TurboVent™Technology Provides Faster Drying and Better Performance on Long Vents

• 4-Way Venting—Right or Left Side, Back or Front

• Accepts a Variety of Slides

• Large-Capacity Metal Mesh Lint Filter

• Front Access for Easier Self-Service

• Reversible Side-Swing Door

BUILT-TO-L AST™FEATURES:

• Premium Porcelain-Enamel Top

• Four-Roller Suspension with Permanently Lubricated Bearings

• Blower Guard Reduces Service Calls

• High-Security Vault

• 5-Year Limited Warranty—All Parts Covered

DRYER SPECIFICATIONS

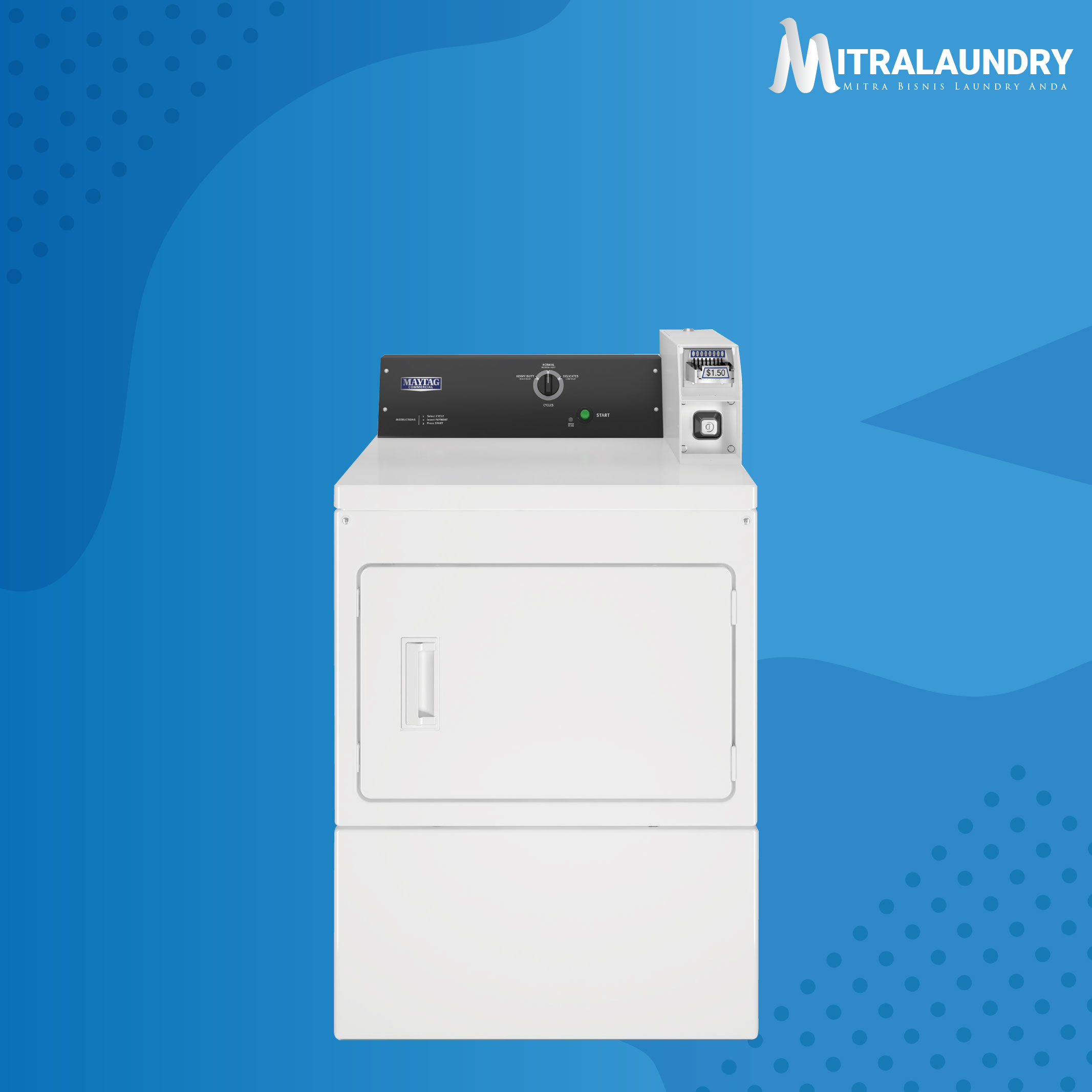

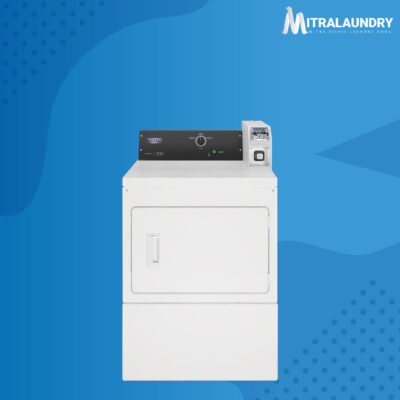

MODEL MDG20CS
MOTOR
Single-phase, thermoprotected against overload, auto-reset
HP (kw).                                                                                                        33 (.25)
TUMBLE SPEED—RPM                                                                   50 ± 1
CAPACITY
Cu. ft. (liters)                                                                                                7. 4 (210)
AIRFLOW
Gas models—cfm (cmm)                                                                            230(6.5)
Electric models—cfm (cmm)                                                                     215 (6 .1)
SOUND LEVEL (EXPORT ODEL ONLY)
Sound pressure level, Lpa (BA) (Kpa: ± 10dBA)                                   58
TUMBLE SPEED
RPM                                                                                                                50  1
ELECTRICAL REQUIREMENTS
MdE model—voltage                                                                                   240 V/60Hz*
MDG model—voltage                                                                                  120V/60Hz
BREAKER/FUSE REQUIREMENTS—amps
MDE model                                                                                                  30
MDG model                                                                                                  15
MDE export model               25
MDG export model               10
ELECTRIC HEATING ELEMENT—watts
Domestic models                                                                                         5,600
Canadian models                                                                                         5,250
Export models                                                                                              4,600
EXHAUST DUCT DIAMETER
In. (mm)                                                                                                        4 (101.6)* *
ELECTRONIC BURNER IGNITION
MDG model                                                                                                    •
GAS RATING
MDG model—BTU/hr. (kcal/hr.)                                                              24,000 (6,048)
MDG export model—BTU/hr. (kcal/hr.)                                                 20,000 (5,040)GAS INLET
MDG model—in.                                                                                           3⁄8N.P.T.
AUTOMATIC PRESSURE REGULATOR
MDG model                                                                                                    •
ADJUSTABLE LEVELING LEGS                                                              •
APPROXIMATE WEIGHT
Crated—lbs. (kg) electric/gas                                                                      160 (73)/113 (74)
Uncrated—lbs. (kg)electric/gas                                                                  147 (67)/150 (68)
DIMENSIONS
Width—in. (mm)                                                                                           27 (686)
Depth—in. (mm)                                                                                           29 (737)
Height—in. (mm)                                                                                          45.75 (1,162)
Door opening diameter—in. (mm)                                                            18.25 (464)
