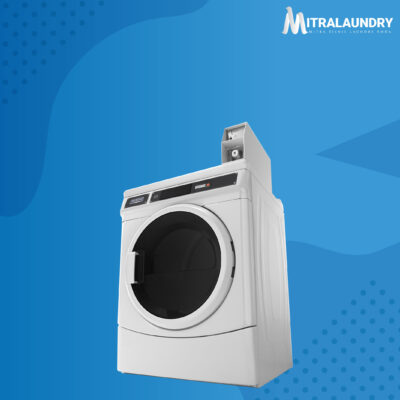

MAYTAG® MDE28PDCGW (Coin Drop)

Model MDE28PDCGW

Maytag® Commercial Single Load, Super Capacity Electric Dryer



Built-To-Last Features

  • 5 Year Limited Warranty – All Parts Covered

Features

  • MICROPROCESSOR CONTROLS: Provides simple programming options for owners: including adjustable cycle price, cycle time, diagnostics and vend count.
  • TURBOVENT™ DRYER TECHNOLOGY: Additional blower wheel provides exceptional performance in long vents. High airflow reduces dry time.
  • PORCELAIN-ENAMEL TOP: Durable finish for high-use environments.
  • FRONT ACCESS PANEL: Provides easy access for Self Service.
  • CAPACITY: Extra-Large 6.7 cu. ft. Capacity
  • CLOTHESPIN™ APP BY MAYTAG COMPATIBLE: Customers can use their smartphones to pay for their laundry, remotely check for available machines.

Description

FEATURES

MICROPROCESSOR
CONTROLS
• Provides simple programmingoptions for owner: including adjustable cycle price, cycle time, diagnostics and vend count.
• Easy one-touch cycle selection for customers
TURBOVENT™ DRYER TECHNOLOGY
• Additional blower wheel provides exceptional performance in long vents.
•High airflow reduces dry time.
PORCELAIN-ENAMEL TOP
• Durable finish for high-use environments
CLOTHESPIN™ APP BY MAYTAG COMPATIBLE
• Customers will love how convenient it is to do their laundry with the new Clothespin app by Maytag.
• They can use their smartphones to pay for their laundry, remotely check for available washers and dryers, and receive a notification when their laundry cycles are complete.

DRYER SPECIFICATIONS

MODEL MDE/MDG18PD
MOTOR
Single-phase, thermoprotected against overload, auto-reset
HP (kw).                                                                                                        33 (.25)
TUMBLE SPEED—RPM                                                                   50 ± 1
CAPACITY
Cu. ft. (liters)                                                                                                7. 4 (210)
AIRFLOW
Gas models—cfm (cmm)                                                                            230(6.5)
Electric models—cfm (cmm)                                                                     215 (6 .1)
SOUND LEVEL (EXPORT ODEL ONLY)
Sound pressure level, Lpa (BA) (Kpa: ± 10dBA)                                   58
TUMBLE SPEED
RPM                                                                                                                50  1
ELECTRICAL REQUIREMENTS
MdE model—voltage                                                                                   240 V/60Hz*
MDG model—voltage                                                                                  120V/60Hz
BREAKER/FUSE REQUIREMENTS—amps
MDE model                                                                                                  30
MDG model                                                                                                  15
ELECTRIC HEATING ELEMENT—watts
Domestic models                                                                                         5,600
Canadian models                                                                                         5,250
EXHAUST DUCT DIAMETER
In. (mm)                                                                                                        4 (101.6)* *
ELECTRONIC BURNER IGNITION
MDG model                                                                                                    •
GAS RATING
MDG model—BTU/hr. (kcal/hr.)                                                              24,000 (6,048)
GAS INLET
MDG model—in.                                                                                           3⁄8N.P.T.
AUTOMATIC PRESSURE REGULATOR
MDG model                                                                                                    •
ADJUSTABLE LEVELING LEGS                                                              •
APPROXIMATE WEIGHT
Crated—lbs. (kg) electric/gas                                                                      160 (73)/113 (74)
Uncrated—lbs. (kg)electric/gas                                                                  147 (67)/150 (68)
DIMENSIONS
Width—in. (mm)                                                                                           27 (686)
Depth—in. (mm)                                                                                           29 (737)
Height—in. (mm)                                                                                          45.75 (1,162)
Door opening diameter—in. (mm)                                                            18.25 (464)
